bs1387 galvanized pipe
1)BS1387 welded galvanized steel pipe
2)the material :Q195-Q235
3)size :3inch*2.5mm
4)zinc:60-120/250-350g/m2

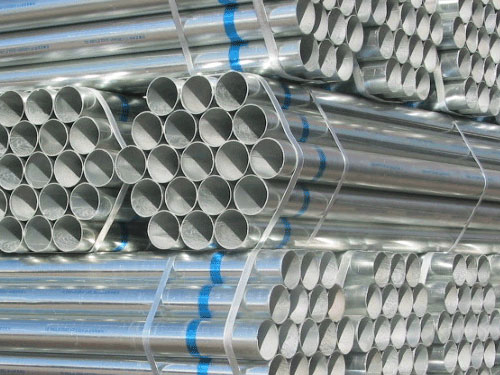

BS1387 galvanized steel pipe
specification:
galvanized Steel Pipe
1)Diameter range: 1/2inch -8inch
2)Wall thickness: above 1.5mm
3)Length: 5.8-12m
Commodity: Galvanized Steel Pipe
Type:
(1) pre-painted (zinc: 40-120G/M2)
Out diameter: Round:16-76mm Square : 15*15 -75*75mm Rectangular:10*20-49.5*99.5mm
Wall thickness: 0.45-2.0mm
(2) hot-dipped galvanized (zinc: above 350G/M2)
Out diameter: 1/2inch - 8inch
Wall thickness: above 1.5mm
Length: Random Length, Fixed Length, SRL, DRL, as you required
Quality standard: ASTM A53, BS1387, GB/T3091-2001
Steel grade: Q195, Q215, Q235
Permissible error: length ±20mm
Use: for low pressure liquid delivery such as water, gas and oil
End: plain end or screw and socket.
process:screw and socket (accoring British or America Standard or Chinese Standard)
Packing: with several steel strips in one bundle, plastic caps (of course, can be packed as our clients’demandsize :3inch*2.5mm
zinc:60-120/250-350g/m2
size :3inch*2.5mm
zinc:60-120/250-350g/m2
bs1387 hot dipped galvanized pipe
1).W.T:0.5-6.0mm
2).O.D:20.3-273mm
3).length:4-14m.
4)quanlity: the first grade
|
Commodity |
Galvanized pipe&Black pipe (Pre galvanized, Hot dipped galvanized) |
|||
|
Shape |
Round pipe |
Square pipe |
Rectangular pipe |
|
|
Outer diameter |
17-273mm |
15*15-400*400mm |
10*20-200*400mm |
|
|
Wall thickness |
0.6-14mm |
0.6-25mm |
0.6-25mm |
|
|
Length |
4m-14m or as customers' requirements |
|||
|
Standard |
ASTM A53,BS1387-85,GB/T3091-08,DIN2440,JIS-G3444,EN10255 |
|||
|
Zinc coating |
Pre galvanized steel pipe: 60-150g/m2; Hot dipped galvanized steel pipe: 200-400g/m2 |
|||
|
End finish |
Plain/ beveled ends or threaded with sockets/ coupling and plastic caps. |
|||
|
Material |
Q195 Q215 Q235 Q345 St37 St52 St37-2 10# 20# 16Mn |
|||
|
Usage |
Scaffolding pipe, Structure pipe, Fence/Door pipe, Furniture, Low pressure fluid pipe for water oil or gas, Boiler pipe. |
|||
