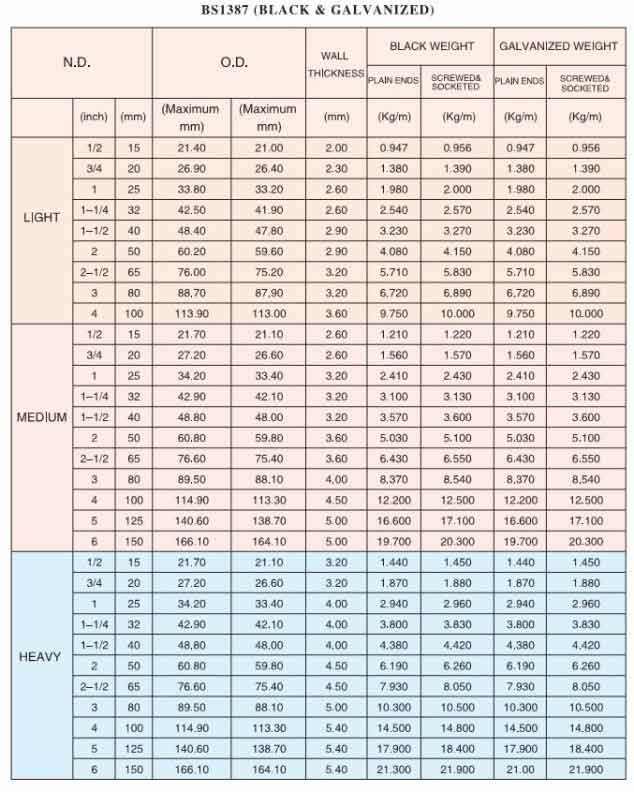

BS 1387 Screwed and Socketed Steel tubes and plain end steel tubes suitable for welding or for screwing to BS 21 pipe threads
STANDARD |
CHEMICAL COMPOSITION |
MECHANICAL PROPERTIES |
Hydrostatic |
|||||
C |
Mn |
P |
S |
Yield |
Tensile |
Elongation |
||
Max% |
Max% |
Max% |
Max% |
(Min) |
(Min) |
(Min) |
(Bar) |
|
Class Light |
0.20 |
1.20 |
0.045 |
0.045 |
195 |
320-460 |
20 |
50 |
Class Medium |
0.20 |
1.20 |
0.045 |
0.045 |
195 |
320-460 |
20 |
50 |
Class Heavy |
0.20 |
1.20 |
0.045 |
0.045 |
195 |
320-460 |
20 |
50 |
Class Light Galvanized Steel Pipe |
||||||||
Nominal |
Designation |
Outside Diameter |
Wall |
Calculated Weight |
Threads |
Number |
||
Min |
Max |
Plain Ends |
Threads&Coupling |
|||||
15 |
1/2 |
21.0 |
21.4 |
2.0 |
0.947 |
0.956 |
14 |
169 |
20 |
3/4 |
26.4 |
26.9 |
2.3 |
1.38 |
1.39 |
14 |
127 |
25 |
1 |
33.2 |
33.8 |
2.6 |
1.98 |
2.00 |
11 |
91 |
32 |
1 1/4 |
41.9 |
42.5 |
2.6 |
2.54 |
2.57 |
11 |
61 |
40 |
1 1/2 |
47.8 |
48.4 |
2.9 |
3.23 |
3.27 |
11 |
44 |
50 |
2 |
59.6 |
60.2 |
2.9 |
4.08 |
4.15 |
11 |
37 |
65 |
2 1/2 |
75.2 |
76.0 |
3.2 |
5.71 |
5.83 |
11 |
24 |
80 |
3 |
87.9 |
88.7 |
3.2 |
6.72 |
6.89 |
11 |
19 |
100 |
4 |
113.0 |
113.9 |
3.6 |
9.75 |
10.00 |
11 |
14 |
Class Medium Galvanized Steel Pipe |
||||||||
Nominal |
Designation |
Outside Diameter |
Wall |
Calculated Weight |
Threads |
Number |
||
Min |
Max |
Plain Ends |
Threads&Coupling |
|||||
15 |
1/2 |
21.1 |
21.7 |
2.6 |
1.21 |
1.22 |
14 |
169 |
20 |
3/4 |
26.6 |
27.2 |
2.6 |
1.56 |
1.57 |
14 |
127 |
25 |
1 |
33.4 |
34.2 |
3.2 |
2.41 |
2.43 |
11 |
91 |
32 |
1 1/4 |
42.1 |
42.9 |
3.2 |
3.10 |
3.13 |
11 |
61 |
40 |
1 1/2 |
48.0 |
48.8 |
3.2 |
3.57 |
3.61 |
11 |
44 |
50 |
2 |
59.8 |
60.8 |
3.6 |
5.03 |
5.10 |
11 |
37 |
65 |
2 1/2 |
75.4 |
76.6 |
3.6 |
6.43 |
6.55 |
11 |
24 |
80 |
3 |
88.1 |
89.5 |
4.0 |
8.37 |
8.54 |
11 |
19 |
100 |
4 |
113.1 |
114.9 |
4.5 |
12.20 |
12.50 |
11 |
14 |
125 |
5 |
138.7 |
140.6 |
5.0 |
16.60 |
17.10 |
11 |
7 |
150 |
6 |
164.1 |
166.1 |
5.0 |
19.70 |
20.30 |
11 |
7 |
Class Heavy Galvanized Steel Pipe |
||||||||
Nominal |
Designation |
Outside Diameter |
Wall |
Calculated Weight |
Threads |
Number |
||
Min |
Max |
Plain Ends |
Threads & Coupling |
|||||
15 |
1/2 |
21.1 |
21.7 |
3.2 |
1.44 |
1.45 |
14 |
169 |
20 |
3/4 |
26.6 |
27.2 |
3.2 |
1.87 |
1.88 |
14 |
127 |
25 |
1 |
33.4 |
34.2 |
4.0 |
2.94 |
2.96 |
11 |
91 |
32 |
1 1/4 |
42.1 |
42.9 |
4.0 |
3.8 |
3.83 |
11 |
61 |
40 |
1 1/2 |
48.0 |
48.8 |
4.0 |
4.38 |
4.42 |
11 |
44 |
50 |
2 |
59.8 |
60.8 |
4.5 |
6.19 |
6.26 |
11 |
37 |
65 |
2 1/2 |
75.4 |
76.6 |
4.5 |
7.93 |
8.05 |
11 |
24 |
80 |
3 |
88.1 |
89.5 |
5.0 |
10.30 |
10.50 |
11 |
19 |
100 |
4 |
113.3 |
114.9 |
5.4 |
14.50 |
14.80 |
11 |
14 |
125 |
5 |
138.7 |
140.6 |
5.4 |
17.90 |
18.40 |
11 |
7 |
150 |
6 |
164.1 |
166.1 |
5.4 |
21.30 |
21.90 |
11 |
7 |
Tolerance |
Class Light |
Class Medium |
Class Heavy |
Wall Thickness : |
- 8% + not limit |
- 10% + not limit |
- 10% + not limit |
Weight : |
+ 10% , - 8% per piece / ± 4% per Bundle (Over 500 ft) |
||
Length : |
+ 50 mm. , - 0 mm. |
